THINKING　バリスタのご紹介

Datasheet	Product Family	Design	Size(mm)	Max. VDC	Max. VAC
Varistor-TVR Series	TVR	Leaded Disc	5 - 20	14-1465	11-1000
Varistor-TVR-V Series	TVR-V (Medium Surge Series)	Leaded Disc	10, 14	150-895	115-680
Varistor-TVR-V Series	TVR-D (High Surge)	Leaded Disc	7-20	150-895	115-680
Varistor-TVR-U Series	TVR-U (Ultra High Surge)	Leaded Disc	10, 14	200-895	130-680
Varistor-TVR-M Series (High Temperature Varistor for Surge Protection)	TVR-M (High Temperature)	Leaded Disc	5-20	170-615	130-465
Varistor-TVR-M Series (Low Voltage Series)	TVR-M (Automotive)	Leaded Disc (Low Voltage Series)	7-20	14-45	--
Varistor-TVR-M Series (48Vdc Vehicle's Electrical System)	TVR-M (Automotive)	Leaded Disc (48Vdc Vehicle's Electrical System)	10-20	65-150	50-115
Varistor-TVR-M Series (High Voltage Series for Automotive Applications)	TVR-M (Automotive)	TVR-M (High Voltage Series)	7-20	170-895	130-680
Varistor-TVG Series	TVG	Leaded Disc	14	200-745	150-550
Varistor-TVT Series	TVT (Thermally Protected Varistor)	Leaded Disc, Block	14, 20, 25	65-1462	50-1000
Varistor-TVA Series	TVA	Leaded, Strap, Block	25-60	170-1465	130 - 1000
Varistor-TVB Series	TVB	Plastic Encapsulated	3225,4032, 5548, 6255	14-615	11-460

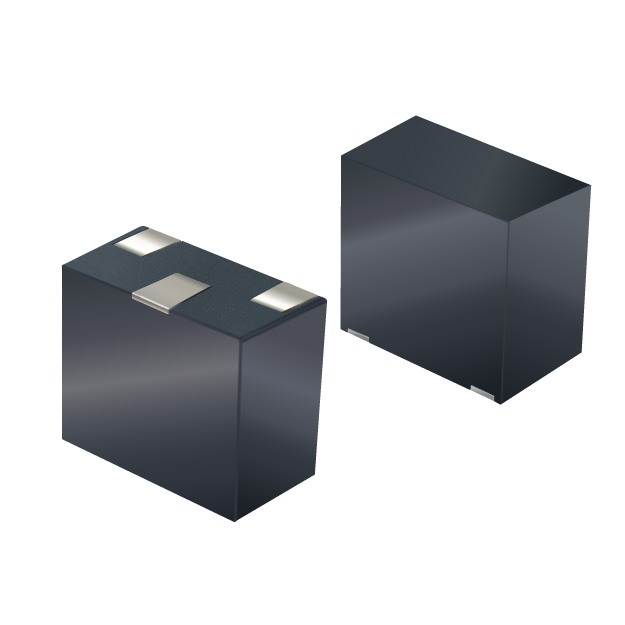

Varistor-TVB-T Series	TVB-T	Plastic Encapsulated Type with 3 Pins	4941	300	230
Varistor-TVM-B Series	TVM-B (Surge Protection)	SMD, Multilayer	0402-3025	5.5-85	4-60
Varistor-TVM-V Series	TVM-V (High Temperature Surge Suppressor)	SMD, Multilayer	0805~2220	22-85	17-60
Metal Oxide Varistor Catalogue	TVM-C (Automotive)	SMD	0402-2220	5.5-56	7-40
